Product Description

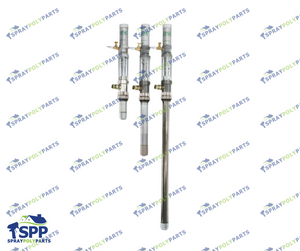

IPM IP-01S Transfer Pumps (1:1 ratio)

IPM’s IP-01 series of pumps are general purpose transfer pumps designed for use with a wide variety of materials. The air driven motor is designed with simplicity in mind for years of use in less than desirable conditions.

Features

• Fully air operated.
• 2 ball piston design provides uniform positive displacement.
• Extremely durable pump with long life packing.

Typical Applications

• For wall mount or 5 gallon pail application.
• Transfer from drum to day tank.
• Continuous or dead end transfer.
• Low viscosity spray adhesive supply.
• Supply pump for air spray and HVLP (high volume low pressure) spray.
• Applications of coatings and wood finishing materials.
• Spray painting machinery.
• Fabricated plastic products.
• Automotive, truck and bus refinishing and components.
• Business machines and computer cabinet.
• Fabricated metal products.
• Wood furniture, cabinets and other wood products.

Typical Fluids Handled

• Anti-freeze
• Windshield washer solvent
• Automatic transmission fluid
• Motor and hydraulic oil
• General chemicals
• Thinners and solvents
• Light viscosity coatings (primers, stains, enamel, alkyd & acrylic paints)
• Spray adhesives and finishes
• Solvent based paints
• Water based paints (SST models)
• Metallic paints
• Mould release compounds
• Lacquers
• Vanishes
• Ceramic glazes

Technical Information

Fluid Ratio : 1:1
Max Output Flow Int : 6.0 gpm (23.0 lpm)
Max Output Flow Cont : 4.0 gpm (15.0 lpm)
Max Output Pressure : 180 psi (12.4 bar)
Max Air Input Pressure : 180 psi (12.4 bar)
Air Inlet Port : 1/4 npt(f)
Fluid Outlet Port : 3/4 npt(f)
Rod Piston Packings : Teflon®
Other Seals : Viton®
Rod Cylinder : Stainless Steel
Other Wetted Parts : Stainless Steel
Weight Stubby Drum : 11 lbs. (4.9 Kg.)
Package : 4”x4”x35” (102mm x 102mm x 889mm) 16 lbs. (7.26 Kg.)
